Bolt Feeder
- * Safe and Reliable Feeding.
- * Safely delivers bolt to lower electrode.
- * Able to feed into deep channel applications.
|
|
Available Nut Type
| Regular Projection Bolt |
|
| Reversed Projection Bolt |
(3 Projections over the top of the head) |
| Thread Size |
M5〜M12 |
| Whole length |
14mm-55mm |
| * Whole Length > Head Diameter |
|
Advantages |
Focus 1 Secure Feed

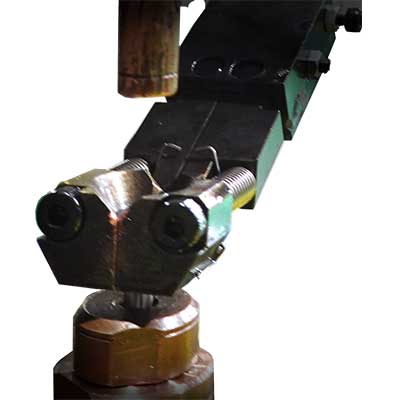

- Axle 1: "Finger Jaw" rotates while holding the bolt straight through the entire weld stroke.

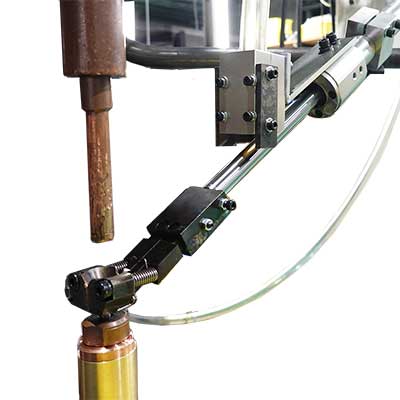

- Axle 2: "Arm" section opens horizontally to stabilize the bolt through the entire weld stroke.
- This Dual Axle Technology allows the stud to travel from the feeder to the lower electrode as smoothly as possible.
Focus 2 Magnet Technology

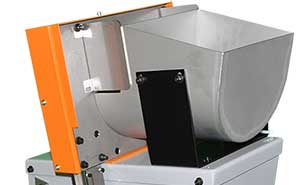

- Non-vibratory selecting design. Uses rotating magnets to select fasteners quickly and consistently even low or high fastener level in the hopper.
 |

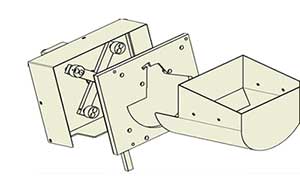

Magnet sort system
|
Focus 3 Small Foot Print
- Fits narrow spaces.
- Saves floor space.
|
|
|
|
